ABAP Tutorial
2 Example
-
1. SE11: create SAPMZJI_mos_pool as a module pool (notice how the program starts with the keyword PROGRAM and not REPORT.
-
2. Activate program
-
3. Create SE51 screens of type Normal screen
-
4. click Layout button
-
5. create group name for radio buttons and fct_codes
-
6. flow logic: uncomment Module status_0100 and rename PROCESS AFTER INPUT. MODULE PAI_0100.
-
7. element list ok-code
-
8. write code in SE38; declare variables.
-
9. create module via flow logic
-
10. create default values and functionality
-
11. create leave program
-
12. create transaction sm93 with gui support

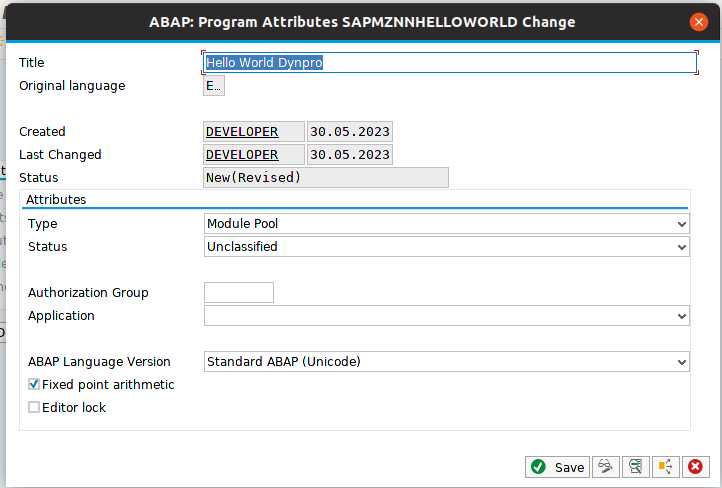

Figure II.1: Create Module Pool Program

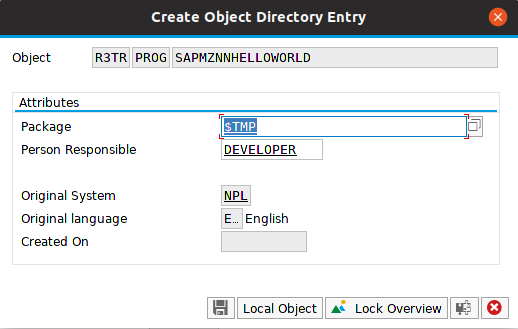

Figure II.2: Create Object Directory Entry

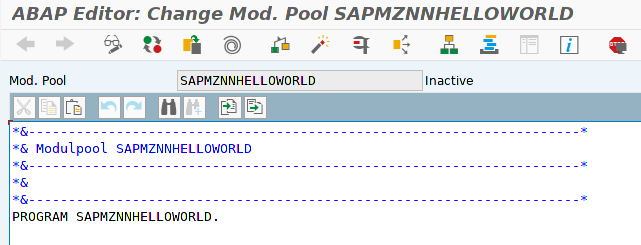

Figure II.3: Inactive Program
Activate with the magic wand

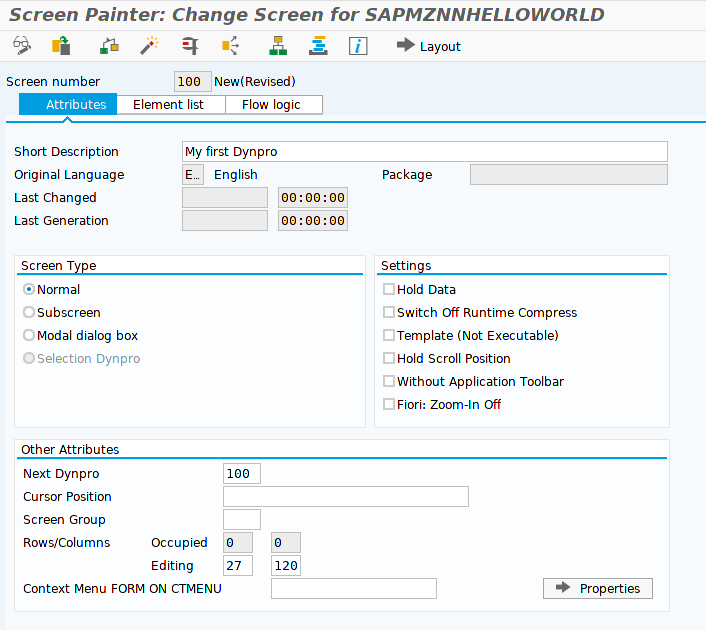

Figure II.4: Screen Painter: Attributes
Choose the Normal Screen Type.
Figure II.5: Screen Painter: Create Text field
Choose the Normal Screen Type.

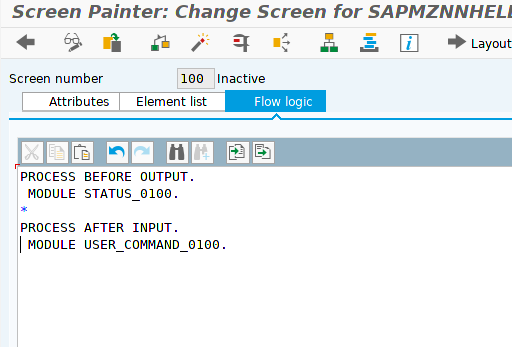

Figure II.6: Uncomment Module

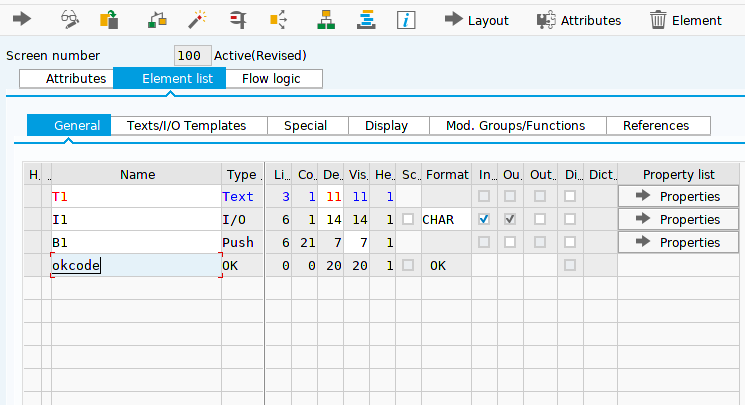

Figure II.7: Create OK Code
